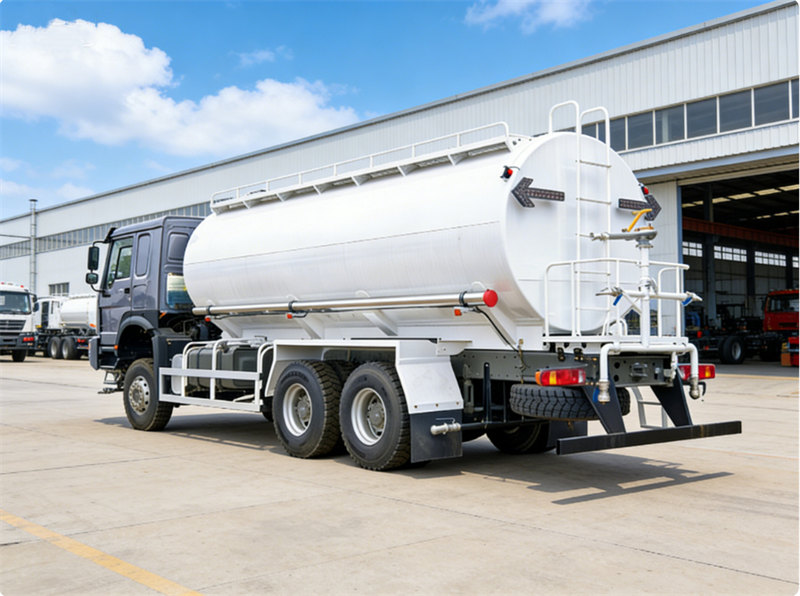

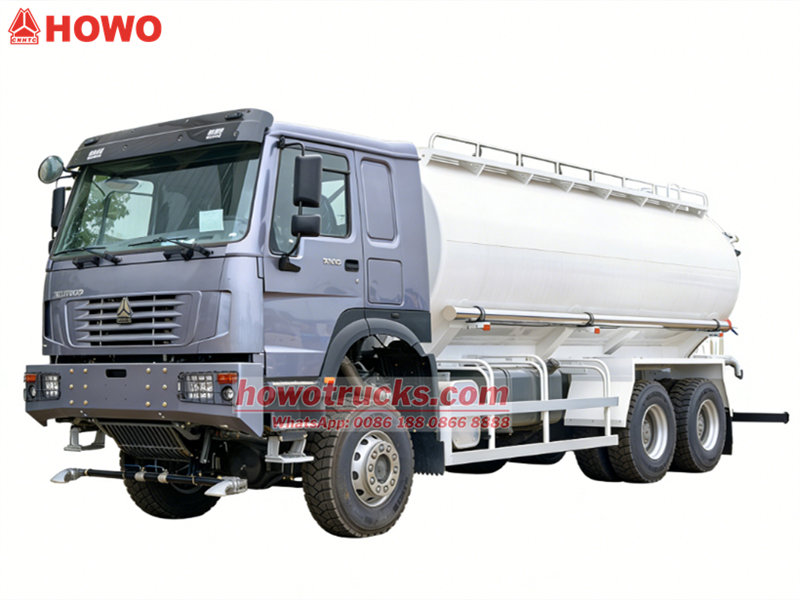

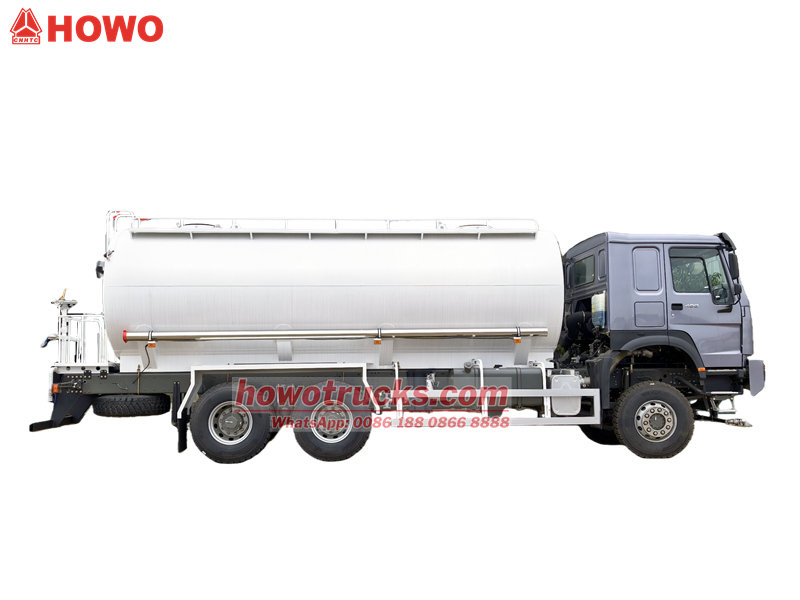

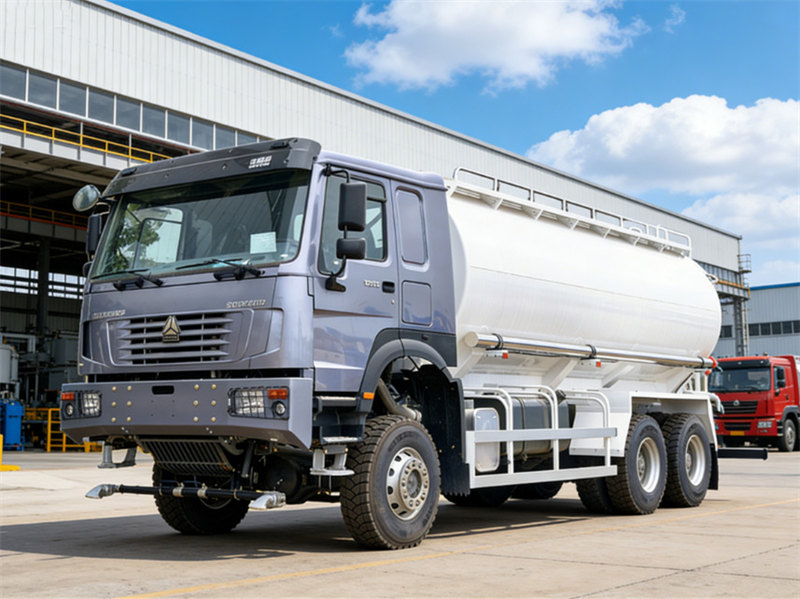

The Howo 6x6 drive mining water delivery tanker is a multi-functional dust suppression and water spraying device adapted to the complex operating environment of mines. Its core function is to solve dust pollution problems during mining and transportation, while also addressing auxiliary needs such as site washing and equipment cooling. The vehicle adopts a 6×6 all-wheel drive configuration, distinguishing it from ordinary sanitation sprinkler trucks by significantly enhancing its ability to navigate complex road conditions and its stability under heavy loads. Equipped with a large 20000L tank and integrated with a complete set of water spraying devices, it can achieve multi-scenario, all-around operation, making it an indispensable heavy-duty specialized piece of equipment for mine environmental management.
Radna sposobnost :
20000 litersVrsta kabine :
HOWO single cabin with sleeper and A/CPogonski sustav :
6×6Međuosovinski razmak (mm) :
10300*2580*3250 mmSpecifično za motor :
400HP/WP12S400E201Mjenjač :
HW19710, 10 Forward & 2ReversePrednja osovina (kg) :
7.5TStražnja osovina (kg) :
13 T*2The Howo 6x6 drive mining water delivery tanker is a multi-functional dust suppression and water spraying device adapted to the complex operating environment of mines. Its core function is to solve dust pollution problems during mining and transportation, while also addressing auxiliary needs such as site washing and equipment cooling.
The vehicle adopts a 6×6 all-wheel drive configuration, distinguishing it from ordinary sanitation sprinkler trucks by significantly enhancing its ability to navigate complex road conditions and its stability under heavy loads. Equipped with a large 20000L tank and integrated with a complete set of water spraying devices, it can achieve multi-scenario, all-around operation, making it an indispensable heavy-duty specialized piece of equipment for mine environmental management.

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS TRUCKS Group
Features:
1. Truck Chassis: Howo 6x6 off road mining chassis model
WP model with 400HP and Euro 2,3,4
2. Tank material: 6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy can be choose
3. Water Pump: China TOP water pump, flow rate 60L/s, working distance over 40m
Optional famous Imported pump

|
Howo heavy 20000L water tanker |
|||
|
Main parameter |
Overall dimension(LxWxH) |
11300*2580*3250mm |
|
|
Wheel base(mm) |
4600+1350mm |
||
|
Driving Type |
6×6 off road |
||
|
Color |
White,blue,green,color can choose |
||
|
Front/rear overhang |
1535/2215 |
||
|
Max speed |
100 km/h |
||
|
Weight in KGS |
GVW |
25000 kg |
|
|
Curb weight |
11500 kg |
||
|
Loading capacity |
16000L |
||
|
Front axles loading capacity |
7.5T |
||
|
Rear axles loading capacity |
16 T*2 |
||
|
Engine |
Engine model |
WP12S400E201 |
|
|
Engine type |
Inline 6-cylinder 4-stroke, supercharged, intercooled, water-cooled |
||
|
Horsepower |
400HP |
||
|
Max. output (kw) |
293Kw |
||
|
Rated speed |
1600rpm |
||
|
Maximum Torque |
1460N.m |
||
|
Displacement(L) |
11.6 L |
||
|
Emission standard |
Euro 2 |
||
|
Transmission |
HW19710,10 forward ,2 reserve |
||
|
Tire |
12.00R20 standard tire,10 tires+1 spare tire |
||
|
Brake |
Air brake |
||
|
Steering |
Power steering |
||
|
Body |
Capacity |
20000L |
|
|
Structure |
TANK MATERAIL |
6mm,Q235 stee |
|
|
Pipe |
Galvanized pipe |
||
|
Discharge nozzle |
SS,at side bottom of tank,quick coupling |
||
|
Discharge nozzle option |
Stainless steel faucet |
||
|
Water pump |
Model |
WEILONG 80QZF-60/90S pump |
|
|
Flow rate(L/m): |
60m3/h |
||
|
Head of delivery(m) |
90m |
||
|
Self-priming function(min/4m) |
1.5 |
||
|
Efficiency(%) |
95% |
||
|
Related rotate speed(r/min) |
1180 |
||
|
Matched power(kw) |
22 |
||
|
Water sprinkler system |

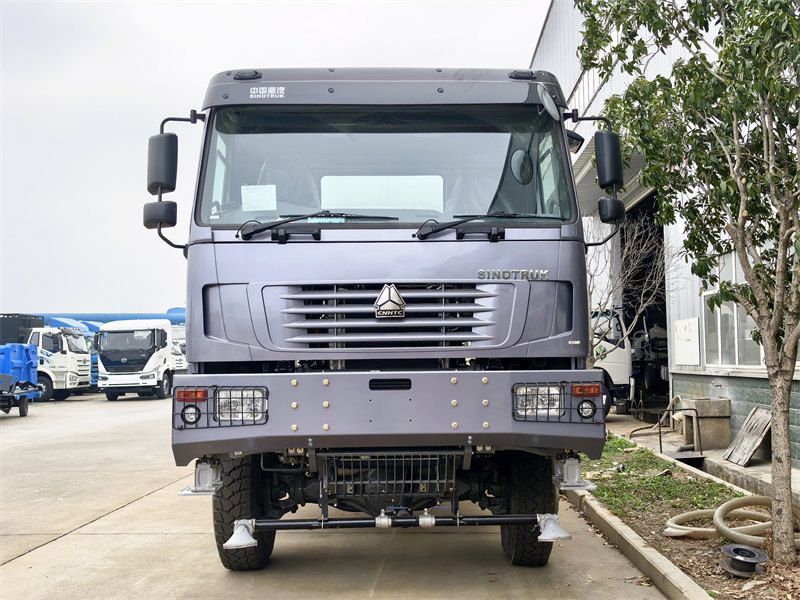

Front sprinkler jet |
14m |
|
|
Rear sprinkler jet |
13m |
||
|
Rear sprinkler nozzle range |
12m |
||
|
Water cannon range |
45m |
||
|
Water time |
>5 minutes |
||
|
Working condition |
Flow≥60L/m, 1.55Mpa |
||
|
Max working pressure |
≥0.9Mpa |
||


1. Powerful and Reliable Powertrain System
♦ The vehicle is equipped with a dedicated WP12S400E201 engine, a turbocharged, intercooled, and water-cooled inline 6-cylinder 4-stroke engine.
Maximum power reaches 293kW (400HP), and maximum torque is 1460N.m, providing ample power output.
♦ It can easily handle the driving and operational needs of complex road conditions such as mine slopes and muddy surfaces, adapting to the power consumption characteristics of heavy-duty mining operations.
♦ Matched with an HW19710 gearbox, it has 10 forward gears and 2 reverse gears, ensuring smooth shifting and high transmission efficiency.
♦ The vehicle speed can be flexibly adjusted according to different mining operation scenarios (such as long-distance transportation and short-distance spraying), balancing operational efficiency and fuel economy.

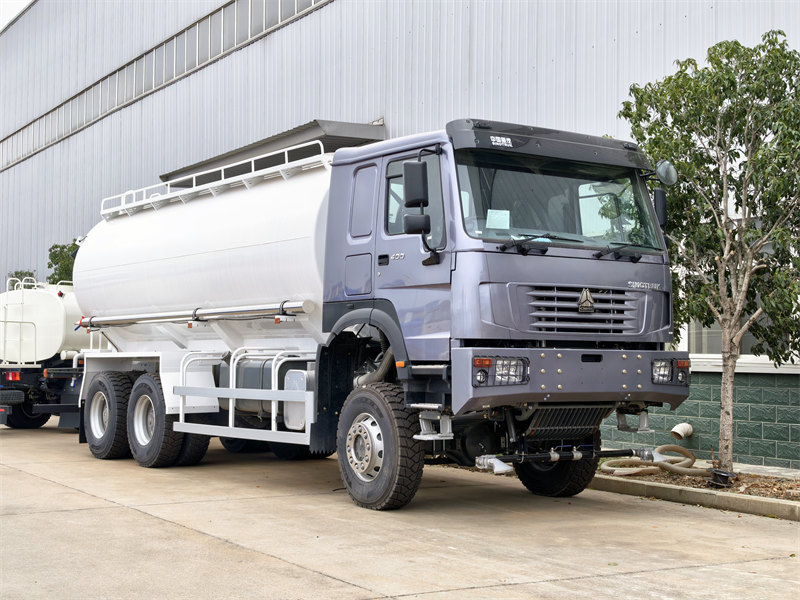

2. Drive and Driving Performance Adapted to Mining Conditions
♦ The vehicle adopts a 6×6 all-wheel drive configuration, equipped with 12.00R20 standard tires (10 working tires + 1 spare tire), providing a large contact patch and strong grip.
♦ This effectively improves the vehicle's passability on soft mine surfaces, inclines, and uneven terrain, preventing slippage and getting stuck.
♦ The vehicle's proportions are well-balanced, ensuring stability under heavy loads while also allowing for maneuverability during operations, enabling it to navigate narrow working areas and between equipment.
♦ Equipped with power steering and air braking systems, the steering is light and precise, and the braking response is rapid, enhancing operational safety in complex conditions and adapting to the steep slopes and winding curves of the mining environment.

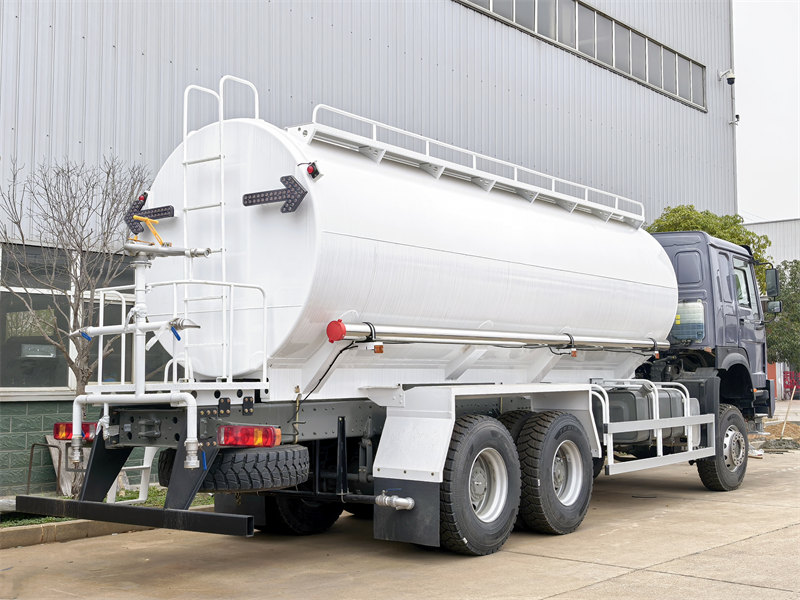

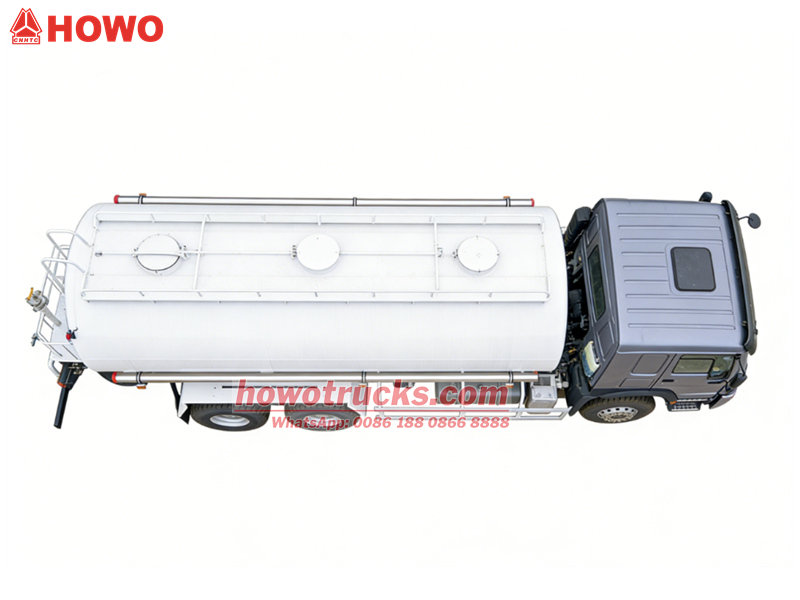

♦ Equipped with a 20,000L large-capacity elliptical tank, constructed from 6mm thick Q235 steel.
♦ The tank boasts high strength, impact resistance, and corrosion resistance, capable of withstanding the impact of crushed rocks and dust erosion encountered in mining operations.
♦ The internal baffle structure of the tank reduces liquid sloshing during movement, improving driving stability.

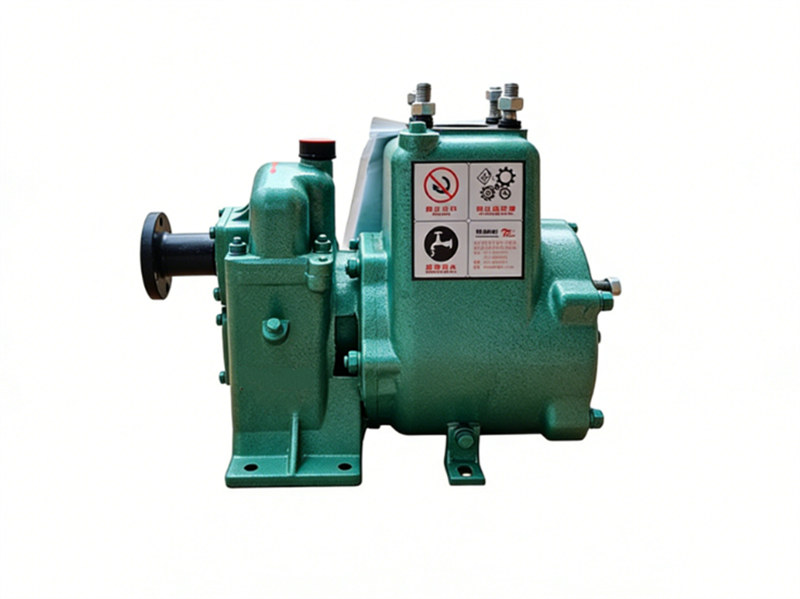

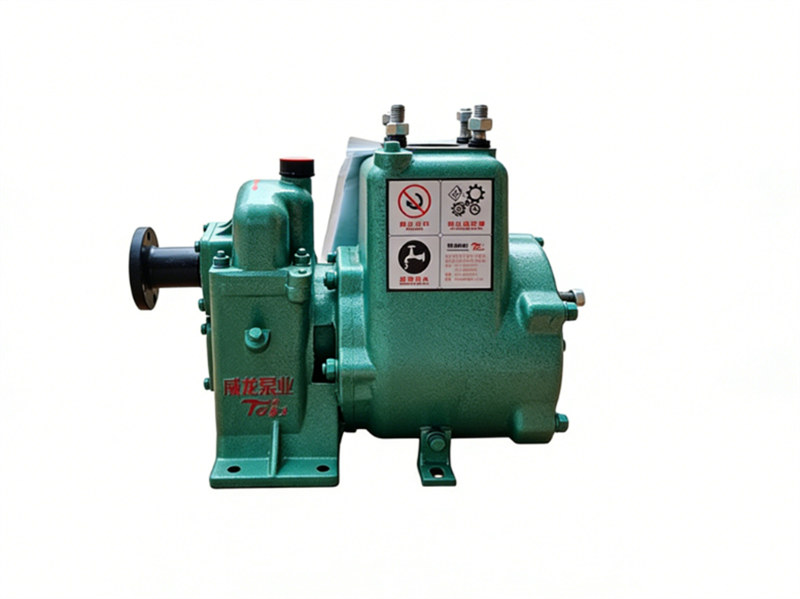

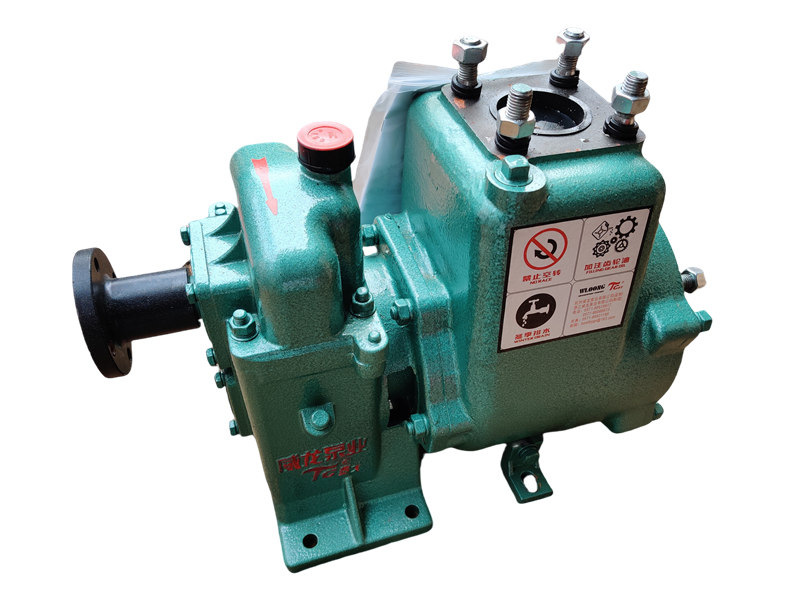

♦ The tank is equipped with a WEILONG 80QZF-60/90S water pump, with a flow rate of up to 60m³/h, a head of 90m, and a self-priming time of only 1.5 minutes/4m³, enabling rapid completion of large-area dust suppression operations.

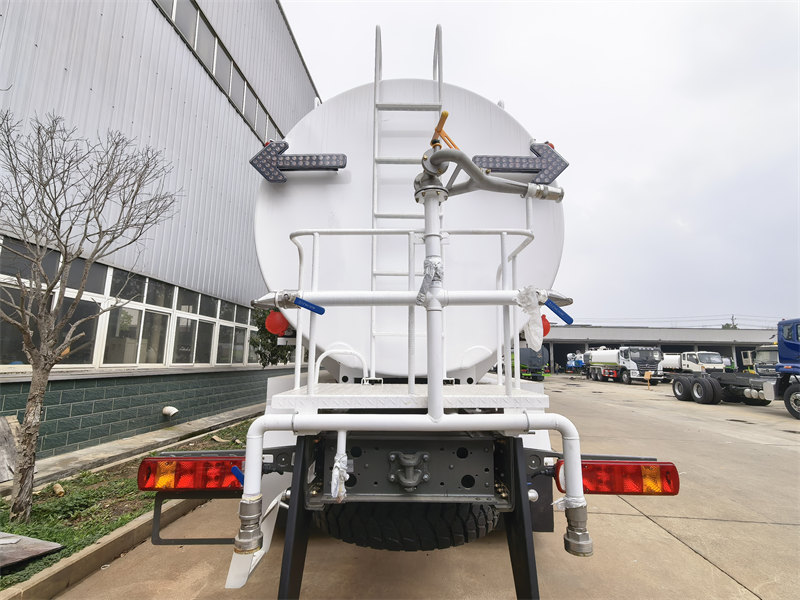

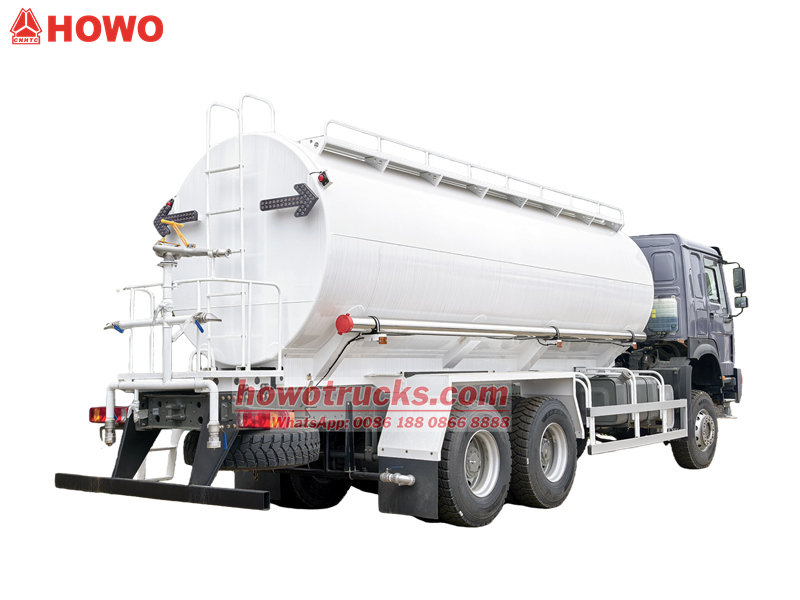

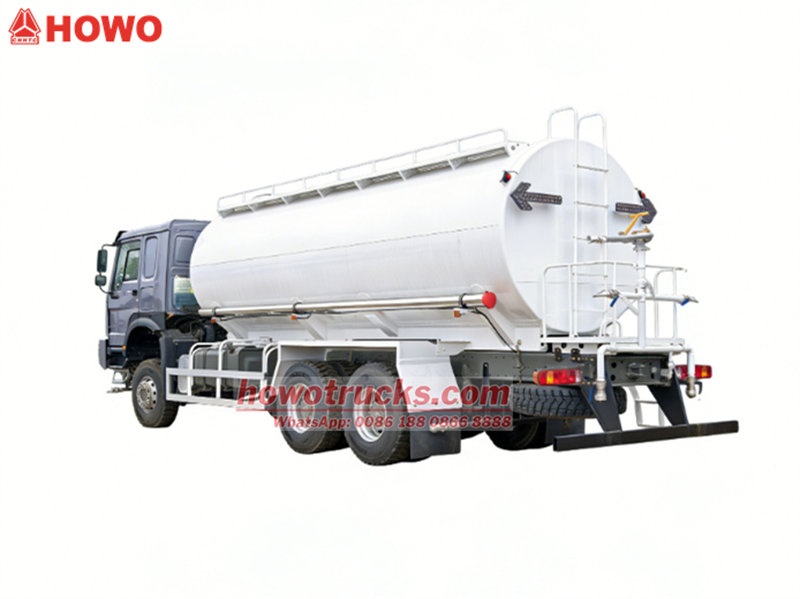

♦ The equipment is fully equipped, integrating a front spray nozzle, a rear working platform, a water cannon, and a rear spray nozzle.

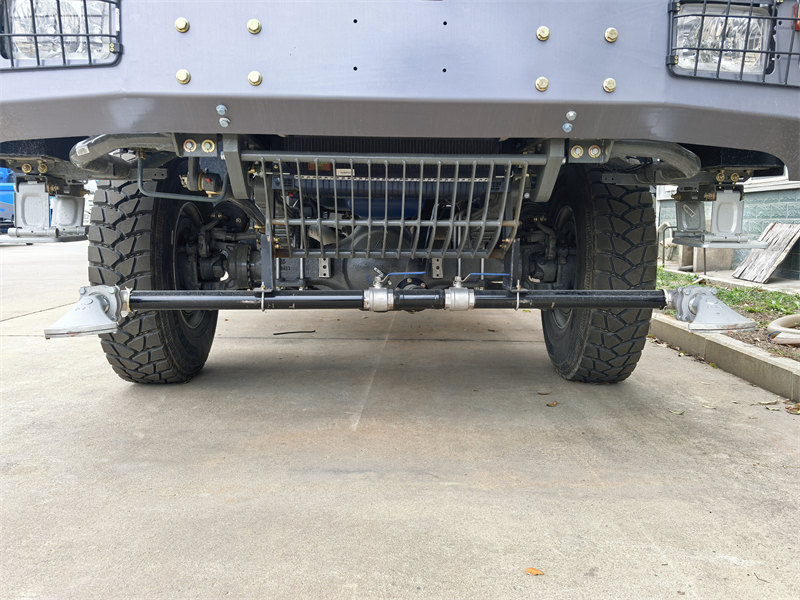

♦ The front spray distance is up to 14m, the rear spray 13m, the rear spray nozzle range is 12m, and the water cannon range is up to 45m.
♦ It can achieve all-around, no-dead-angle watering, dust suppression, and washing operations—capable of large-area dust suppression on mine transport roads and precise washing of mining equipment and work areas.
♦ Furthermore, it is equipped with galvanized pipes and stainless steel nozzles, which are wear-resistant and corrosion-resistant, reducing wear and tear from mine dust and extending the equipment's service life.

♦ WEILONG water pumps offer advantages such as strong self-priming capability and high head, enabling rapid water filling and reducing waiting time. They also provide stable water delivery, preventing leaks and insufficient pressure, ensuring continuous operation.

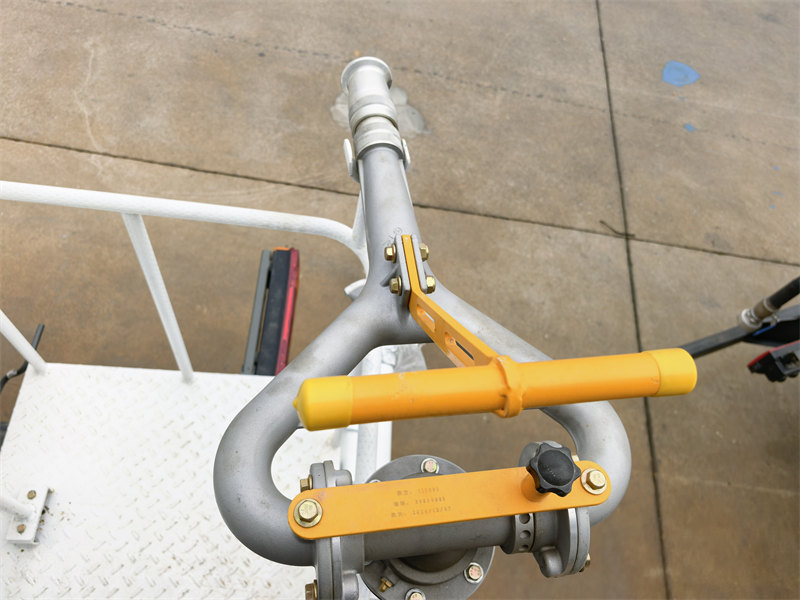

♦ Furthermore, the piping is galvanized, the discharge nozzle is stainless steel, and quick-connect fittings are included. Optional stainless steel faucets are also available. These features enhance corrosion resistance and ease of maintenance, further extending the lifespan of the operating system.
|
Model |
Flow rate (m³/h) |
Head (m) |
Speed (r/min) |
Shaft power (KW) |
NPSHr (m) |
Self-priming time (min/4m) |
Efficiency (%) |
|
80QZBF-60/90N(S) |
60 |
90 |
1180 |
22.5 |
4.5 |
1.5 |
70 |
|
65QZ-40/45N(S) |
40 |
45 |
1450 |
9.25 |
4.5 |
1.5 |
72 |
|
65QZ-50/50N |
50 |
50 |
1180 |
10.5 |
4.5 |
1.5 |
70 |
|
65QZBF-50/110N(S) |
50 |
110 |
1450 |
24 |
- |
- |
70 |
1. Strong adaptability to complex road conditions
The 6×6 all-wheel drive configuration is its core advantage. Compared with ordinary water sprinkler trucks, it can easily cope with complex road conditions such as soft mine roads, uphill sections, and potholes. It can go deep into various mining operation areas such as mining faces, spoil heaps, and transportation roads without relying on flat roads, and has a wider operation coverage.

2. Adaptable to large-scale mining needs
The 20,000L large-capacity tank, paired with a high-efficiency water pump, allows for large-area operations with a single fill, reducing the number of refills and significantly improving operational efficiency. The complete set of equipment can perform multi-scenario operations, including routine dust suppression by watering, as well as auxiliary operations such as equipment washing and emergency water supply.

3. Robust and Durable Structure
The tank body is constructed of 6mm thick Q235 steel, the pipes are galvanized, and the nozzles are stainless steel, making it impact-resistant, corrosion-resistant, and wear-resistant. It can withstand the impact of gravel, dust erosion, and water impurities during mining operations, reducing equipment wear.
The power transmission system uses a mature, specialized configuration; both the engine and gearbox are designed for mining scenarios, ensuring high stability, low failure rate, and the ability to meet the high-intensity 24-hour operation requirements of mines.
